C-core process control and process

Some high-end products from the strict process control, our company for every process is very strict, in order to make all the technical indicators can be higher than the international indicators and other companies. Here I introduce you to C-core process control and processes

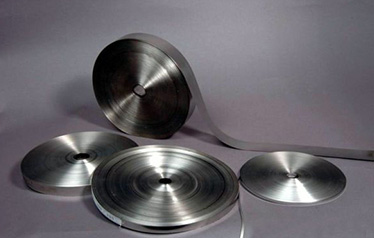

First of all in the selection, we are very targeted, for different customer orders, we will personally choose the appropriate materials, and each material will have the certificate of service and test reports provided, in addition to IQC review test data . The second step is to strip, we use the selected points of equipment and hard straight alloy knife, each of the production capacity is very strong, up to 2T / day. The third step is winding, with high precision dual-axis driven automatic iron core around the device. Its capacity is up to 11 tons a day, although our coefficients vary for different materials, but the control is good. General sheet thickness of 0.23--0.25mm new material, the lamination coefficient tail 0.97 or 0.98; sheet thickness 0.1--0.2mm new material lamination coefficient value; sheet thickness 0.05-0.08 new material lamination coefficient The value is 0.90 or 0.91. Next is the plastic, the company strictly requires the end face must be flat, in addition to using four strip fixed plastic in order to increase the size and shape control accuracy. The fourth step is annealing, this step with 12 nitrogen network belt and Taiwan high vacuum annealing furnace, nitrogen generator can provide high purity nitrogen 250m3 / hour, high quality. Then after the demoulding vacuum pressure dipping automatic drying. The use of imported ring resin paint. After grinding and polishing finishing. Clean with ultrasonic cleaning, but also add special water-based rust-proof liquid to wash rust. Final shockproof packaging, which is a vacuum and anti-rust paper with VCI.
